Full Description

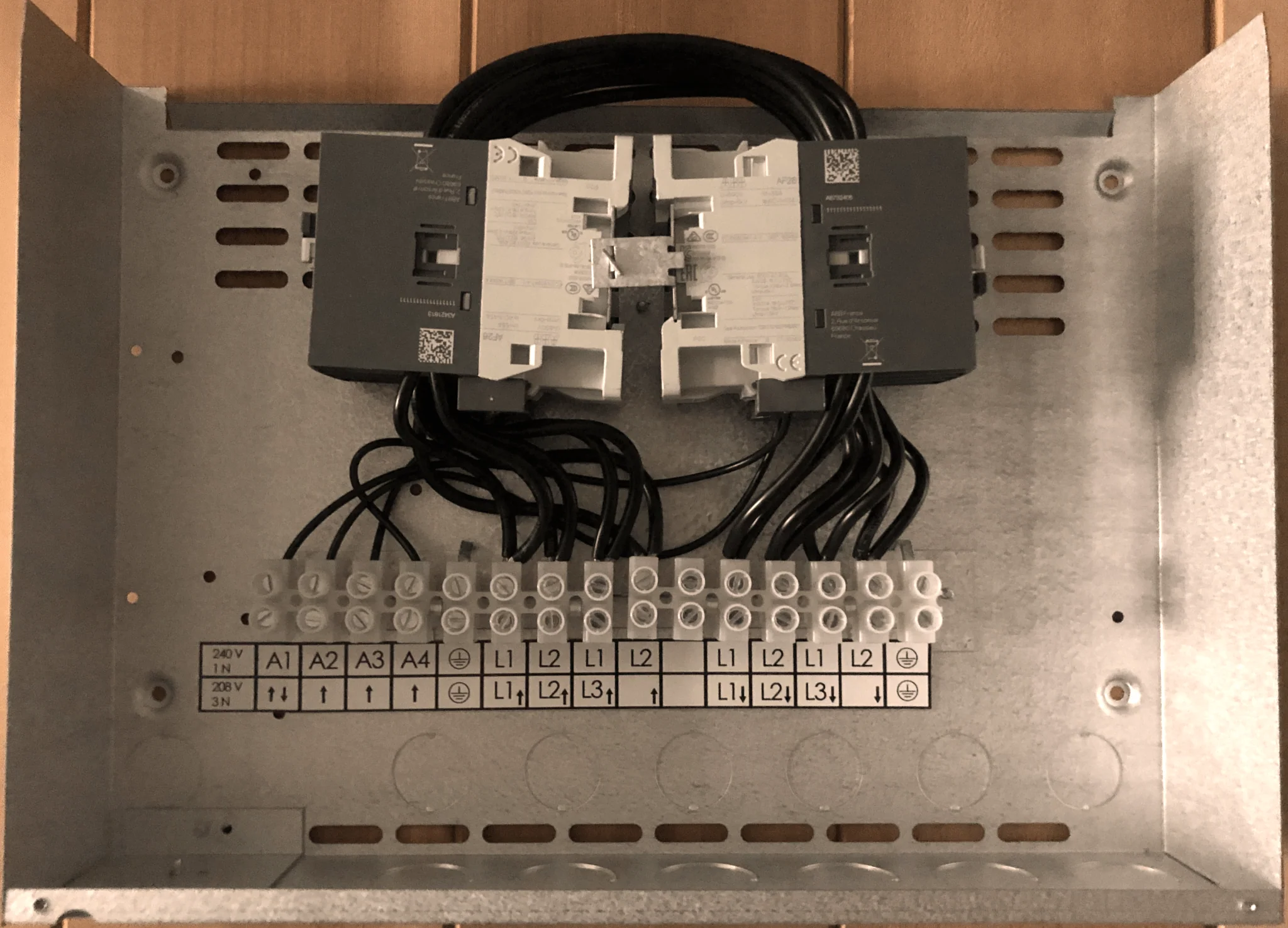

Harvia power extension unit LTY45 is used for the control of additional electric sauna heaters in large saunas. By using the power extension unit LTY45 the maximum load range can be increased up to 38 kW (the maximum load depends on the type of the control unit)



Features

• Works with Xenio CX30/45/170 Control Units
• Increases max load range to 38kW
• Can be wall mounted
• 14.3"W x 2.9"D x 10.5"H



Includes

• Power Unit
• Installation and Operation Manual
• Limited Warranty



Specifications

Model	Xenio LTY45
Supply Voltage (Per extension box)	240 V 1Ph
Length	14.3" (364mm)
Width	2.9" (73mm)
Height	10.5" (267mm)
Weight	6.1lbs



Manuals

Harvia Installation and Operation Manual
