Full Description:

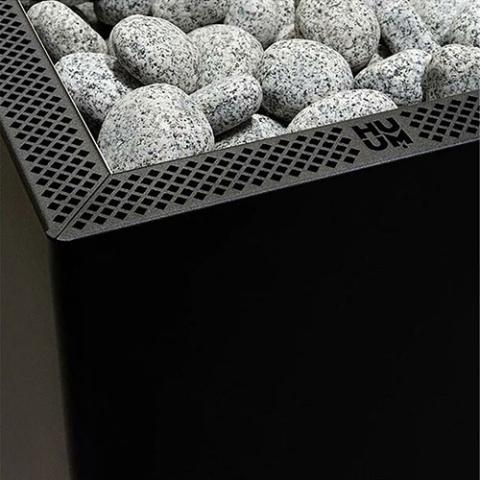

The HUUM CORE Sauna Heater offers flexibility and style with its contemporary black metal exterior design. This sleek and powerful unit is engineered for sauna rooms up to 566 cubic feet (CF).



Features

• Sleek matte black metal casing
• Black steel inlay finish adds a cohesive look
• Can be completely embedded into a sauna bench
• Direct contact between stones and heating elements
• Stainless steel, industrial quality heating elements
• Designed, engineered, and made in Estonia
• Works with UKU Controls (sold separately)
• 66 pound stone capacity (required 2 boxes sold separately)
• Dimensions: 15.2"W (38.5 cm) x 15.2"D (38.5 cm) x 32.7"H (83 cm)
• Limited 3-year residential warranty and limited 1-year commercial warranty (excluding elements)



Includes

• Sauna Heater
• Adjustable Legs (4)
• Installation and Operation Manual
• 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty (Excluding Elements)



Specifications

Heater
Power rating	9 kW
Steam room min	8 m³
Steam room max	13 m³
Holding capacity of sauna rocks	30 kg
Weight	19 kg
Height	830 mm
Width	385 mm
Depth	385 mm
Connection
Fuse	16 A
Supply voltage, 3-phase	3/N~400 V
Power cable (N x mm²)	5 x 2.5



Safety Clearances

A - 40mm | B - 465 | H - 830mm



Manuals

Huum Core Installation and Opperation Manual
